Description

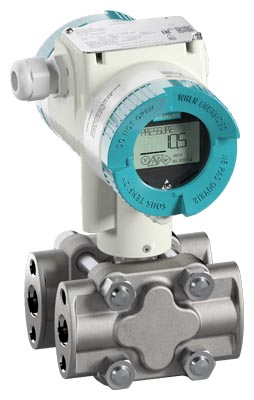

SITRANS P320 Pressure transmitter Gauge pressure HART (4…20 mA) Measuring cell filling: Silicone oil Maximum measuring span: 160 bar (2321 psi) Oval flange, fastening thread: 7/16-20 UNF (IEC 61518) Diaphragm: Alloy C276/2.4819, measuring cell: Stainless steel 316L/1.4404; Sensor Differential pressure: process flange: Stainless steel 316/1.4408 Housing made of stainless steel precision casting CF3M/1.4409 (similar to 316L) Dual chamber device Intrinsic safety, Explosion proof, Dust ignition proof zone 21/22 (DIP), increased safety zone 2 2 x M20 x 1.5 With display (lid with glass window) Cable gland and sealing plug attached, stainless steel 316L/1.4404 Inspection certificate (EN 10204-3.1) – material of pressure-containing and wetted parts Factory certificate – NACE (MR 0103-2016 and MR 0175-2015) ATEX (Europe)
