Description

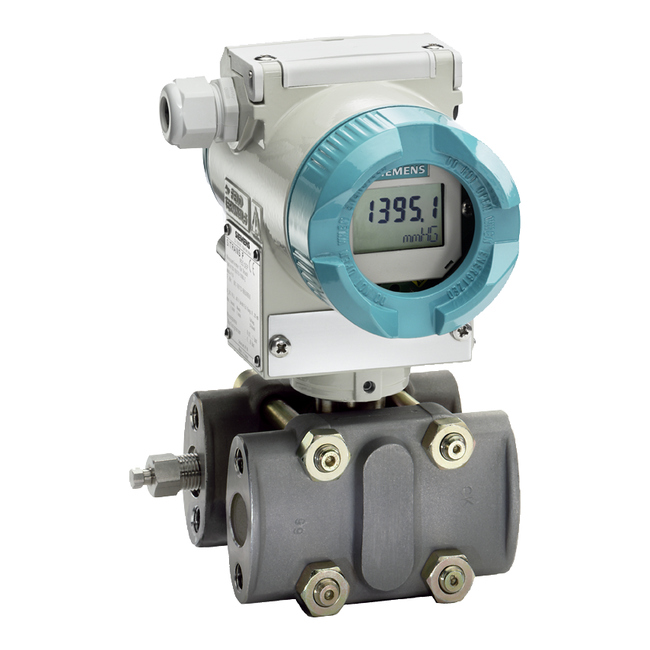

SITRANS P DS III, HART, 4-20 MA transmitter for absolute pressure from differential pressure transmitter series, Measuring cell filling silicone normal cleaning Span 1 to 30 bar a (14.5 to 435 psi a), max. static pressure 160 bar a Diaphragm stainless steel parts of measuring cell stainless steel Process connection: 1/4-18 npt mounting thread: M10 Die-cast aluminium housing, process flange bolts stainless steel Standard design . Ex nA/ic – Use in Zone 2 Electric connection and cable inlet: cable gland m 20 x1.5 without visible digital indicator (digital display hidden, setting: mA) With steel mounting bracket Plug Han 8D (instead of han 7D) Range (linear characteristic) specify in plain text: Y01: …to… mBar,kpa,mpa,…
