Description

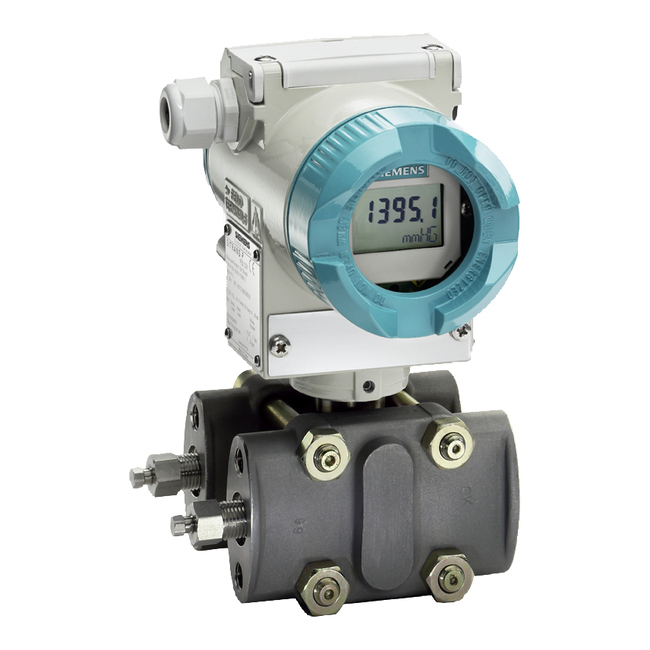

SITRANS P DS III / P410, HART, 4-20 mA transmitter for differential pressure and flow PN 32/160 gas 1/liquids 1 art. 3.3 sep Measuring cell filling silicone normal cleaning Span: PN 160 (MWP 2320 psi): 16 to 1600 mbar (6.424 to 642.4 inH2O), max. static pressure 160 bar Diaphragm stainless steel parts of measuring cell stainless steel Process connection: 1/4-18 npt mounting thread: 7/16-20 unf Die-cast aluminium housing, process flange bolts stainless steel Standard design . None explosion protection Electric connection and cable inlet: cable gland 1/2-14 npt Housing cover with window customized adjustment supplement Y21 required With stainless steel mounting bracket with mounted manifold (5-fold) 7MF9411-5CA, PTFE gaskets, stainless steel screws and pressure test, certified with a factory certificate acc. EN10204-2.2 Range (linear characteristic) specify in plain text: Y01:… to …mBar,kpa,mpa,…
