Description

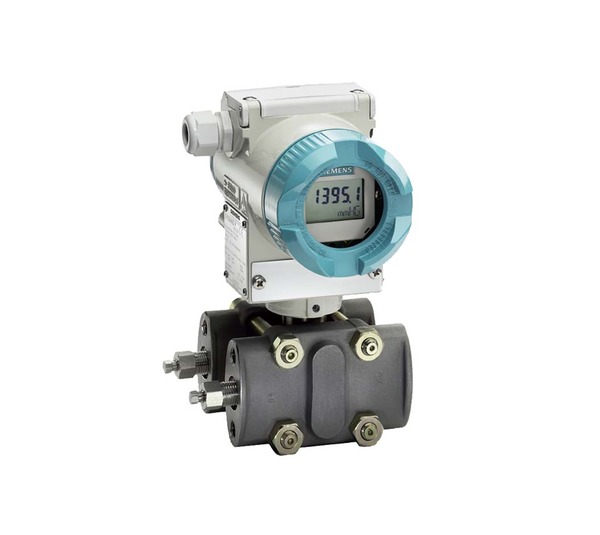

SITRANS P DS III / P410, HART, 4-20 mA transmitter for differential pressure and flow PN 32/160 gas 1/liquids 1 art. 3.3 sep Measuring cell filling silicone normal cleaning Span: PN 160 (MWP 2320 psi): 50 to 5000 mbar (20.08 to 2008 inH2O), max. static pressure 160 bar Diaphragm stainless steel parts of measuring cell stainless steel Process connection: 1/4-18 npt mounting thread: 7/16-20 unf Die-cast aluminium housing, process flange bolts stainless steel Standard design . None explosion protection Electric connection and cable inlet: cable gland 1/2-14 npt Housing cover with window (setting: mA) With stainless steel mounting bracket Rating plate inscriptions in Englisch, pressure units in H2O resp. psi Test certificate according to standard IEC 60770-2 Range (linear characteristic) specify in plain text: Y01:… to …mBar,kpa,mpa,… Stainless steel tag plate (measuring point description) Max.16 character, specify in plain text:
