Description

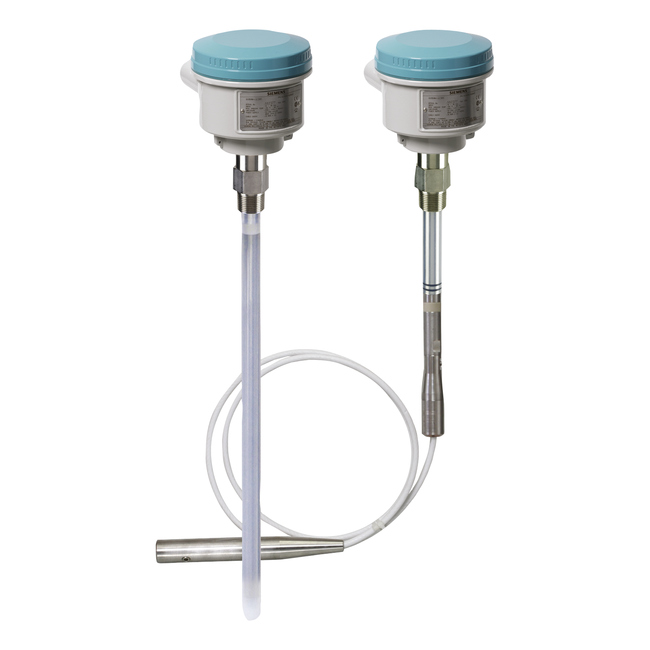

SITRANS LC300 Capacitance level transmitter, rod design: continuous, contact, monitors level or interface in liquids or solids. Extension options up to 5 m (16.40 ft). Process Connection Threaded, 316L (1.4404) stainless steel: 1″ NPT ((Taper), ANSI/ASME B1.20.1) Probe Length: Probe Length (Lengths from flange face) (Threaded lengths include process thread.): Extended rod, factory adjusted length 300 to 1000 mm (11.81 to 39.37″) Thermal Isolator: Without thermal isolator Wetted Seals: FKM Probe Material: 19 mm (0.75″) diameter 316L stainless steel, PFA lined rod Approvals: General Safety CSA, FM, CE, UKCA, RCM Enclosure: Aluminum epoxy coated 2 x 1/2″ NPT via adapter – cable inlet, IP65 .
